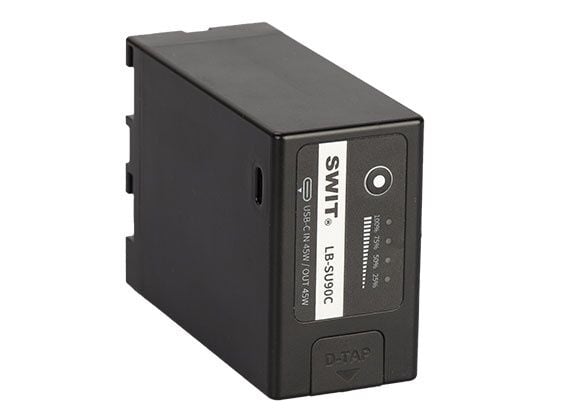

Swıt LB-SU90C SONY BP-U Serisi Batarya
Sony Z198/280 model kamera bataryası USB-C D-Tap DC
90Wh SONY BP-U Battery
with D-tap and USB-C
LB-SU90C is a new 90Wh large capacity BP-U type DV battery with D-tap output and 45W USB-C in/out, for SONY PXW FS5/FS7, PXW-FX6/FX9, PXW-Z200, HXR-NX800, PXW-Z280/X280, Blackmagic PYXIS 6K, etc.
90Wh Large Capacity
LB-SU90C consists of 8pcs battery cells, 14.4V nominal voltage, 90Wh/6200mAh large capacity to keep cameras powered for longer time. The constant power load is 70W/6A.

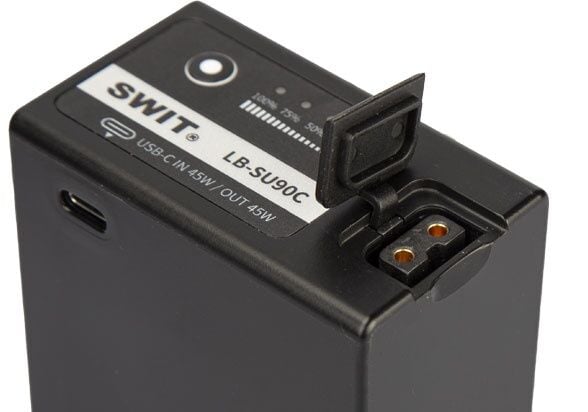

14.4V D-tap Power Socket
The LB-SU90C BP-U battery provides a D-tap power socket of 11-16.8V voltage, 70W/6A high load for various kinds of video devices. You can also charge the battery via the D-tap socket by SWIT PC-U130B2.

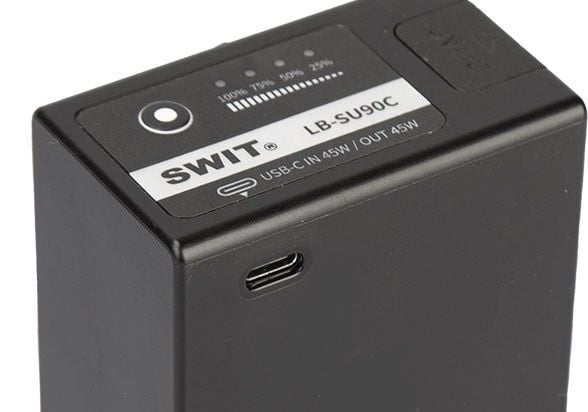

USB-C 45W for Laptop
LB-SU90C provides a USB-C socket of 5V/9V/12V/15V/20V(Max) 2.25A, 45W power output for various kinds of laptop, tablets or smart phones, supports BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook 13, Macbook Pro 13/15, ThinkPad New S2/T470/X270, Dell XPS 13/Latitude, HP Spectre x360-13/EliteBook Folio G1, Samsung Chromebook Plus, Google Pixelbook, Huawei Matebook, etc)
USB-C 45W Charging Input
You can also charge LB-SU90C by USB-C charger. Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W power input, which means you can fully charge the 90Wh battery within 3 hours.

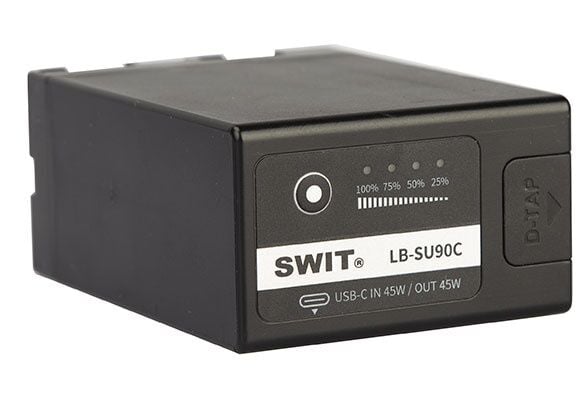

4-level Power Indicator
Press the power check bottom, the 4-level LEDs indicates remaining power percentage.

|
Nominal Voltage |
14.4V |
|
Capacity |
90Wh, 6.2Ah |
|
Max power load |
70W, 6A |
|
D-tap |
14.4V, 70W, 6A |
|
USB-C |
45W input: 5V/9V/12V/15V/20V, 2.25A 45W output: 5V/9V/12V/15V/20V, 2.25A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
|
Original batteries |
SONY BP-U30, BP-U60, BP-U100 |
|
Compatible cameras |
SONY PXW-FS5/FS7, PXW FX6/FX9, PXW-Z280/X280, PXW-Z200, HXR-NX800 etc Blackmagic PYXIS 6K |
|
Dimension |
70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature |
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
|
Net weight |
Net 462g; With package0.5kg |
